BV500S-D Ducted Extraction Unit


£999.60 inc VAT

*If your order is urgent and you require delivery sooner, please contact our offices on 01423 790039 or email us

Production lead time: 3-4 weeks.




Window Adaptor

Buyers outside of the UK are responsible for any VAT, tariff, duty, taxes, handling fees, customs clearance charges, and other fees required by their country for importing consumer goods. For more details please visit our delivery information page


Part No: BV500S-D Ducted Extraction Unit

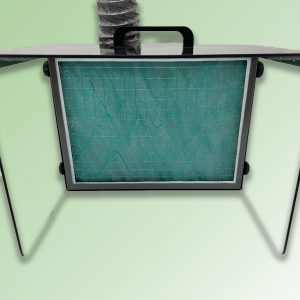

The BenchVent BV500S-D, a small desktop LEV unit to contain and filter for a cleaner, healthier working environment. Suited for within dental labs, electronic design and rework, pharmaceutical labs, design and technology, science in education and more……

What’s included with the BV500S-D?

  • Filter unit with fan and 2 metres flexi-duct
  • PETG Clear Spray Shield
  • 1 x Particulate filter
  • Power Lead
  • Data/Warranty Booklet

Where can the BV500S-D desktop fume cabinet be used?

The BenchVent BV500S-D is designed for use in laboratories where the operators need to see the objects they’re working on. It’s specifically designed to filter fumes, vapour and light particulates coming from:

  • Monomers
  • Adhesives
  • Conformal coatings
  • Resins
  • Sealants
  • Solder fumes
  • Hazardous powders
  • Light grinding particles
  • General solvent vapours

It will also filter light grinding particles, dusts and organic solvents.

The weighing and handling of potentially harmful chemicals, applying adhesives, cleaning solvents, and using small grinding tools etc is carried out within the shield and fumes and particles are vented into the outside environment. The BV500S-D has an open front which is handy when users need to move items within the booth, like re-positioning weigh scales and the likes. The poly-carbonate shield is removable for easy storage.

This unit is designed for immediate operator protection from concentrations of airborne contaminants whereby all gases, fumes, vapours and particulates within the hood enclosure are filtered and cleaned air is exhausted to the right rear of the cabinet. This model has been designed to be quiet in operation and can be assembled in seconds. Place onto a desk, bench or trolley and then simply plug in and switch on.

Key Features:

  • Hinged lid to assist in positioning products
  • Particulate pre-filter followed by high grade bonded carbon filter for adsorption
  • Clear PETG plastic fume hood

Download the datasheet for more information: bv500sd datasheet

Lifetime Guarantee

All BenchVent fume filtration and extraction systems carry a lifetime warranty.

Filtration Method

The particulate (intake) filter is a three stage graduated fibre filter with a high ‘dust’ holding capacity for long life. Filtration to 5 micron particles.

NB: Spray particulate sizes vary from 10 to 20 microns. The dual process of filtration and then extraction to atmosphere via flexi-duct, vastly reduces and/or eliminates operator exposure to potentially hazardous substances.

Demonstrating adequate control of the risks to the health of employees students and the general public, from dusts, powders, mists, fumes and vapours is the fundamental requirement of the Control of Substances Hazardous to Health(CoSHH). For LEV information for employers visit the HSE website.

Additional information

Weight 23 kg

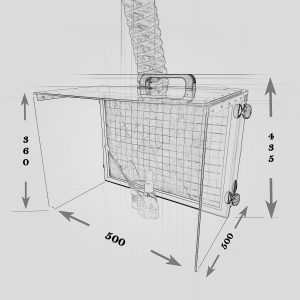

505x390x430 (wxhxd)


Steel construction finished in grey – PETG spray/fume shield – particulate filter – centrifugal blower, external rotor motor type brushless, UL, VDE and CSA approved – sealed electrical wiring and switch, downstream of filter. Flexi-duct 2 metres x 100mm dia. – carry handle

Air Volume at Free Air


Ave. Air Velocity at Filter Face


Ave. Air Velocity at Shield Face

0.55 m/sec

Fan Motor Spec

240V 50Hz 105W, 110V 60Hz 115W


Partilce Filter – IFA3

Noise Level LAeq dB(A)

58 db(A)

Delivery time 3-4 Weeks
