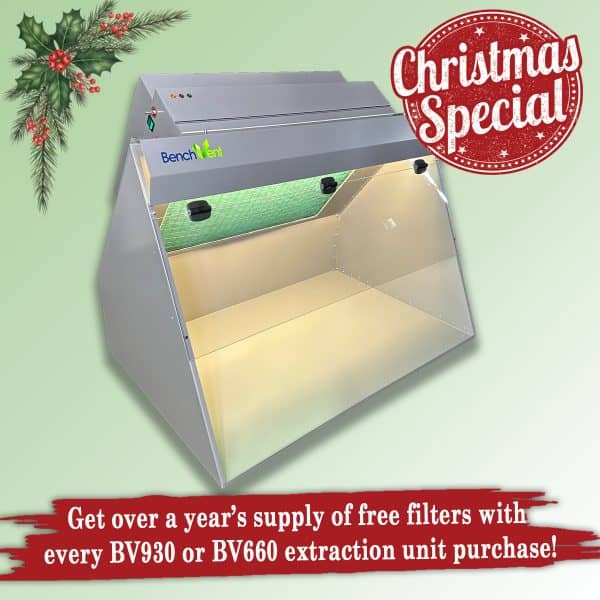

Art No: BV930H-C – Recirculating Fume Cabinet
The BV930H-C is large dual-speed hood mounted filtration cabinet with high-efficiency carbon filter. It is designed to offer local exhaust ventilation for large projects, and immediate operator protection when external venting isn’t possible.
Additionally, the BV930H-C also provides operators with a safe workstation for handling potential harmful chemicals. All processes is done within the hood enclosure in front of the the intake filter area.
For artwork applications, the enclosure can accommodate a standard A1 drawing boards, which will sit at an angle so the unit captures the overspray efficiently, keeping the surrounding working area clean.
This unit is suitable for use in dental & medical laboratories, pharmaceutical labs, school science laboratories, design and research laboratories and electronic manufacturing.
The BV930H-C is suitable to filter fumes, vapours and particulates from:
- Spray Adhesives
- Conformal coatings (thin polymer film usually used to coat circuit boards)
- Light Grinding
- Organic Solvents
- Other hazardous powders and particulates
- Quiet in operation
- Can be assembled in seconds. Place onto a desk, bench or trolley and then simply plug in and switch on.
- Steel construction finished in dove grey – fan/filter unit mounted onto hood enclosure complete with clear polycarbonate panel and hood lighting
- particulate (intake) filter
- bonded carbon filter
- 2 x centrifugal blowers
- External rotor motor (brushless, UL, VDE and CSA approved)
- Sealed electricals, downstream of filters.
- 960 x 660 x 620 (wxhxd) [internal]
- 960 x 740 x 720 (wxhxd) [overall]
Download the datasheet for more information: BV930H-C Datasheet
What’s included with the BV930H-C
- Filter unit with 2x Centrifugal fans
- Hood Enclosure
- Hood Light
- Poly-carbonate hinged front panel
- 1 x Particulate filter
- 1 x Activated Carbon Filter
- Power Lead
- Data/Warranty Booklet
All BenchVent filtration and extraction systems carry a lifetime guarantee.
High Quality Filtration
The particulate (intake) filter is a three stage graduated fibre filter with a high ‘dust’ holding capacity for long life. Filtration to 5 micron particles. (Optional EPA filters available to approx 0.3 micron particles). This is followed by a high grade bonded carbon filter. Through the process of filtration, adsorption and dilution, operator exposure to potentially hazardous substances is vastly reduced or eliminated.
Demonstrating adequate control of the risks to the health of employees students and the general public, from dusts, powders, mists, fumes and vapours is the fundamental requirement of the Control of Substances Hazardous to Health (CoSHH). For LEV information for employers visit the HSE website.
960x660x620 (wxhxd) [internal]
Steel construction finished in grey – fan/filter unit mounted onto hood enclosure complete with clear polycarbonate panel and hood lighting – particulate (intake) filter – bonded carbon filter – 2 x centrifugal blowers, external rotor motor type brushless, UL, VDE and CSA approved – sealed electricals, downstream of filters.
|Air Volume at Free Air||
|Ave. Air Velocity at Filter Face||
0.57m/sec (0.40m/sec slow setting)
|Ave. Air Velocity at Hood Face||
0.50m/sec (0.39m/sec slow setting)
|Fan Motor Spec||
230V, 50Hz, 210W, 115V 60Hz 220W
Particle Filter: IFA2 – Carbon Filter: AC100 – Optional EPA Filter: HE705
