P1002-C – Dual Speed Primary A2 Recirculating Air Carbon Filtration Unit
£1,463.00
£1,755.60 inc VAT
Delivery Time : 1-2 Weeks
Buyers outside of the UK are responsible for any VAT, tariff, duty, taxes, handling fees, customs clearance charges, and other fees required by their country for importing consumer goods. For more details please visit our delivery information page
- Description
- Additional information
Description
Part No: P1002-C – Dual Speed Primary A2 Recirculating Air Carbon Filtration Unit
The P1002-C is a large dual-speed filtration unit with high-efficiency carbon filter inside. It is designed to offer local exhaust ventilation for large projects, and immediate operator protection when external venting isn’t possible.
Additionally, the P1002-C also provides operators with a safe workstation for handling potential harmful chemicals. All processes are done under or beside the fan unit in front of the intake filter area.
This extraction unit serves the purpose to sit on top or behind a bespoke hood or surround. It enables users to design and construct hoods/enclosures/benches to suit their particular requirements.
The unit can be positioned at any angle offering total flexibility of enclosure design.
This unit is suitable for use in dental & medical laboratories, pharmaceutical labs, school science laboratories, design and research laboratories and electronic manufacturing.
P1002-C Applications:
The P1002-C is suitable to filter fumes, vapours and particulates from:
- Spray Adhesives/Aerosols
- Conformal coatings (thin polymer film usually used to coat circuit boards)
- Paints
- Monomers
- Resin
- Sealants
- Solders
- Light Grinding
- Organic Solvents
- Cleaners
- Other hazardous powders and particulates
Key Features
- Quiet in operation at 62db
- Lifetime Warranty
- Can be assembled in seconds. Place onto an enclosure. hood, desk, bench or trolley and then simply plug in and switch on.
- Steel construction finished in grey – fan/filter unit
- particulate (intake) filter
- bonded activated carbon filter
- 2 x centrifugal blowers
- External rotor motor (brushless, UL, VDE and CSA approved)
- Sealed electricals, downstream of filters.

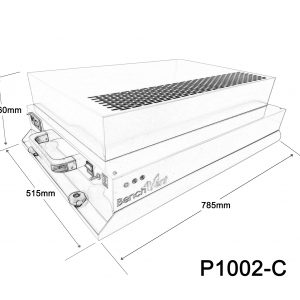

Dimensions:
- 785 x 515 x 260 (wxhxd) [overall]
Download the datasheet for more information : P1002-C
What’s included with the P1002-C
- Filter unit with 2x Centrifugal Blower fans
- 1 x Particulate filter
- 1 x Activated Carbon Filter
- Power Lead
- Data/Warranty Booklet
Lifetime Guarantee
All BenchVent filtration and extraction systems carry a lifetime guarantee.
High Quality Filtration

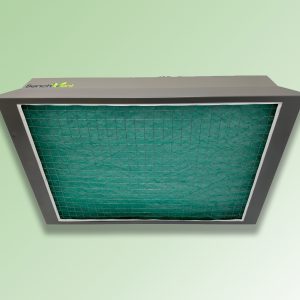

The particulate (intake) filter is a three stage graduated fibre filter with a high ‘dust’ holding capacity for long life. Filtration to 5 micron particles. (Optional HEPA filters available to approx 0.3 micron particles). This is followed by a high grade bonded carbon filter. Through the process of filtration, adsorption and dilution, operator exposure to potentially hazardous substances is vastly reduced or eliminated.
Demonstrating adequate control of the risks to the health and safety of employees, students and the general public, from dusts, powders, mists, fumes and vapours is the fundamental requirement of the Control of Substances Hazardous to Health (CoSHH). For LEV information for employers visit the HSE website.
Additional information
| Weight | 22 kg |
|---|---|
| Dimensions | 785 x 515 x 260 (wxhxd) [overall] |
| Description | Steel construction finished in grey – fan/filter unit – particulate (intake) filter – bonded carbon filter – 2 x centrifugal blowers, external rotor motor type brushless, UL, VDE and CSA approved – sealed electricals, downstream of filters. |
| Air Volume at Free Air | 710m3/hr |
| Ave. Air Velocity at Filter Face | 0.60m/sec (0.40m/sec slow setting) |
| Fan Motor Spec | 230V, 50Hz, 210W, 115V 60Hz 220W |
| Filters | Particle Filter: IFA2 – Carbon Filter: AC100 – Optional EPA Filter: EPA705 – Optional HEPA Filter HEPA705P |
