BV-FN – Downdraught Filtration Bench

Price varies depending on specification please contact our sales team for exact prices.

Datasheet

Manual

Contact us for the delivery lead time 01423 790039 or email us

SKU: BV-FN

Buyers outside of the UK are responsible for any VAT, tariff, duty, taxes, handling fees, customs clearance charges, and other fees required by their country for importing consumer goods. For more details please visit our delivery information page

Description

Part No: BV-FN – Downdraught Filtration Bench

Heavy Duty Downdraught Filtration bench to contain and filter for a cleaner, healthier working environment within dental labs, electronic design and rework, pharmaceutical labs, design and technology, science in education and more…… Designed for heavy industrial use.

For use in numerous situations where external venting is impractical but where contaminant capture and filtration is necessary.

Due to price variations depending on filter specification’ please contact our sales team for exact prices.

Applications include the filtration of fumes, vapour and particulates emanating from:

  • Monomers, adhesives, hazardous powders/particulates,
  • conformal coatings, resins, sealants, solders, welding/grinding
  • particles and dusts, sanding/refinishing etc.

Operation:

The BV-FN range is of heavy duty downdraught benches are of quality finish and well suited to installation in both continuous industrial production applications and those where the environment demands a higher grade appearance, such as, laboratories, testing houses, electronics etc. Stainless steel versions are available for clean room or food grade applications.

It is suitable for surface loads up to 150kg as standard, can accommodate up to 500kg surface loading upon request.

Optional accessories include: Remote fans for ducting to external vent system, electronic speed control, enclosures, “hours run” meter and castors to enable the bench to be easily moved around the work space.

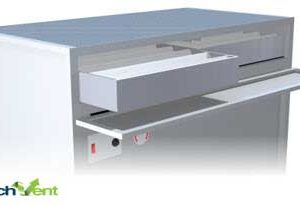

Filtration:

These units are designed for immediate operator protection from concentrations of airborne contaminants whereby all gases, fumes, vapours and particulates placed on top of the unit are drawn into the intake filters. Cleaned air is exhausted at the base of the unit.

Other filter sets include:

FILTER CATEGORY APPLICATIONS
A – Non Sparking Dusts Aluminium – Plastics – Atmospheric dusts – Flour or similar – GRP – Airline cleaning of electronics
F – Fine Dusts Carbon fibre finishing/sanding – Powder sampling – Other composites – Softwood dusts – Tool cleaning without RCS – Suitable for most general dust applications
B – Very Fine Dusts Fingerprinting – Rapid prototyping – Model making – Conservation and restoration – Printer / copier toner cartridge recycling – Powder sampling – Some chemical dusts
L – HEPA Filtered Pharmaceuticals – Hardwoods and MDF – Laboratory – Optical – Clean packing areas – Materials containing RCS – Hazardous dusts
C – Dust and Light Sparks Fettling – Sanding – Deburring – Dressing of welds
E – Low Volume Fume Solvents – Conformal coatings – Adhesives – Airbrushing – Cleaning fluids – Not for MEK
S – Smoke and Fume Soldering – Brazing – Conservation

Demonstrating adequate control of the risks to the health of employees students and the general public, from dusts, powders, mists, fumes and vapours is the fundamental requirement of the Control of Substances Hazardous to Health (CoSHH). For LEV information for employers visit the HSE website.

Additional information

Weight 130 kg
Dimensions

BV-FN is available in 5 sizes:
BV-FN066784 – 674x677x840 (WxDxH) – 610X656 work area
BV-FN126784 – 1274x677x840 (WxDxH) – 1210×656 work area
BV-FN186784 – 1874x677x840 (WxDxH) – 1810×656 work area
BV-FN129784 – 1274x977x840 (WxDxH) – 1210×956 work area
BV-FN189784 -1874x977x840 (WxDxH) – 1810×956 work area

Description

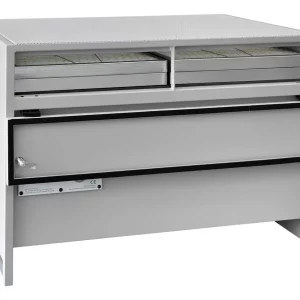

Comprising anodised aluminium frame sections, grey steel outer panels, galvanised steel inner panels, 2mm thick smooth steel top (powder coated). Integral 240v fan-set (110V version available), IP56 motor enclosure, on/off switch, 3mtr mains lead and fused plug.

Air Volume at Free Air

BV-FN066784 – 1500m3/hr
BV-FN126784 – 3000m3/hr
BV-FN186784 – 4500m3/hr
BV-FN129784 – 4500m3/hr
BV-FN189784 – 6250m3/hr

Ave. Air Velocity at Filter Face

1.5m/sec

Fan Motor Spec

240V 50Hz Single Phase. 170W-1140W dependent on the unit

Filters

A: Non Sparking Dusts, F: Fine non sparking dust B: Very fine non sparking dusts, L: HEPA filtration E: Low volume fume, C: Dust with some sparks

Noise Level LAeq dB(A)

70dBA @ 1m
