Art no: BV300S – A3 Re-circulatory Glue Booth
The BenchVent BV300S is a recirculatory glue booth which comes complete with spray shield. It is designed for art, graphics, hobbies, modelling and crafts, for use in areas where ducted glue booths are not practical. Users can position it two ways, reclining or upright, to suit the work they are doing:

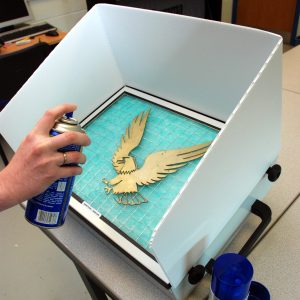

- Reclining position (on back-stand) – For Spray Mount, aerosol lacquers and fixatives etc. applied to artwork placed onto the filter. BV300S accommodates artwork up to A3.
- Upright position – For model sprays and airbrush use – light grinding particles – solder fume displacement – general solvent dilution etc.
The BV300S can accommodate artwork up to an A3 size.
The BV300S are suitable arts and graphics, hobbies,modellinig and craft applications. It will extract fumes and filter particles creared by:
- Aerosol adhesives
- Airbrush Sprays
The BV300S is not recommended for continued use, such as in production applications, especially in extremely confined areas wher harmful solvent vapours and fumes may accumulate. For this environment, you will need higher specification extraction cabinets such as BV660H-C or BV930H-C
- Portable design, all you need is a work-space or trolley to place it on
- Quiet operation
- High quality construction
What’s included with the BV300S?
- Filter unit with fan(s) and back stand attached
- Spray Shield
- 1 x Particulate filter
- Charcoal Impregnated fibre filter
- Power Lead
- Data/Warranty Booklet
Download the datasheet for more information: BV300S Datasheet
All BenchVent filtration and extraction systems carry a lifetime guarantee.
How does the filter extract dangerous contaminants?
The particulate (intake) filter is a three stage graduated fibre filter with a high ‘dust’ holding capacity for long life. Filtration to 5 micron particles. NB: Spray particulate sizes vary from 10 to 20 microns. The carbon impregnated fibre filter (behind intake) assists in the reduction of solvent odours. Through the process of filtration, adsorption and dilution, operator exposure to potentially hazardous substances is vastly reduced.
Demonstrating adequate control of the risks to the health of employees students and the general public, from dusts, powders, mists, fumes and vapours is the fundamental requirement of the Control of Substances Hazardous to Health (CoSHH). For LEV information for employers visit the HSE website.
Steel construction finished in grey –– plastic replaceable spray/fume shield – back stand / carry handle – particulate filter – carbon impregnated fibre filter – axial fan, external rotor motor type brushless, UL, VDE and CSA approved – sealed electrical wiring and switch, downstream of filters.
|Air Volume at Free Air||
|Ave. Air Velocity at Filter Face||
|Ave. Air Velocity at Hood Face||
|Fan Motor Spec||
230V 50Hz 40W, 115V 60Hz 45W
Particle Filter: IFA3: – Charcoal Filter CHA3 – Filter Kit: FKA3
|Noise Level LAeq dB(A)||
