BV660H-C – Recirculating Fume Cabinet

£1,690.50

£2,028.60 inc VAT

*If your order is urgent and you require delivery sooner, please contact our offices on 01423 790039 or email us

Delivery Time : 1-2 Weeks

SKU: BV660H-C

Choose Voltage* *

Spare Filters

Optional Extras

Buyers outside of the UK are responsible for any VAT, tariff, duty, taxes, handling fees, customs clearance charges, and other fees required by their country for importing consumer goods. For more details please visit our delivery information page

Description

Part No: BV660H-C – Recirculating Fume Cabinet

The BenchVent BV660H-C a re-circulatory hood mounted filtration cabinet with a high-efficiency carbon filter specifically designed to provide local exhaust ventilation in areas where it’s not possible to use ducted LEV unit or fume filtration cabinet. This unit has a similar specification as the BV660H-D, but features a higher-efficiency carbon filter which cleans the air before circulating it back in the room.

BV660H-C Applications:

The BV660H-C is for use in areas where external venting is impractical and hydrocarbon vapor and gas filtration is necessary. This unit is capable of filtering fumes, vapours and particles from:

  • Electrochemicals (cleaning solvents, conformal coatings, etc)
  • Resins
  • Sealant and adhesives both in aerosol and static form
  • Solder pots and solder irons

The BV660H-C is also used in orthopaedics and dental laboratories to control staff exposure to methyl methacrylate and cyanoacrylate adhesives. It’s also used to for safe weighing of hazardous powders.

Key Features of BV660H-C:

  • Clear polycarbonate panel for protection
  • Hood lighting
  • Large capacity making it ideal for a wide range of uses

What’s included with the BV660H-C?

  • Filter unit with centrifugal fan
  • Hood Enclosure
  • Hood Light
  • Polycarbonate hinged front panel
  • 1 x Particulate filter
  • 1 x Activated Carbon Filter
  • Power Lead
  • Data/Warranty Booklet

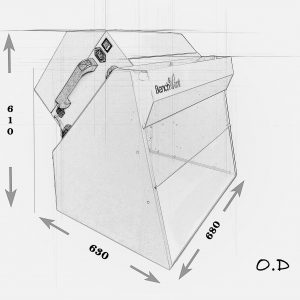

Dimension:

  • 670 x 525 x 450 (wxhxd) [internal]
  • 680 x 600  x 630 (wxhxd) [overall]

Download the datasheet for more information: BV660H-C Datasheet

Lifetime Guarantee on this Hooded Filtration Cabinet

All BenchVent filtration and extraction systems carry a lifetime guarantee, giving customers full peace of mind when it comes to providing a cleaner and healthier working environment for both employees, customers and students.

High Quality Filtration and Filters

The particulate (intake) filter is a three stage graduated fibre filter with a high ‘dust’ holding capacity for long life. Filtration to 5 micron particles. (Optional HEPA filters available). This is followed by a high grade bonded carbon filter. Through the process of filtration, adsorption and dilution, operator exposure to potentially hazardous substances is vastly reduced or eliminated. These units are designed for immediate operator protection from concentrations of airborne contaminants whereby all gases, fumes, vapours and particulates within the hood enclosure are filtered and cleaned air is exhausted to the top rear of the cabinet.

Demonstrating adequate control of the risks to the health of employees students and the general public, from dusts, powders, mists, fumes and vapours is the fundamental requirement of the Control of Substances Hazardous to Health (CoSHH). For LEV information for employers visit the HSE website.

Additional information

Weight 56 kg
Dimensions

675×445 (wxd) [internal] 680x610x630 (wxhxd) [overall]

Description

Steel construction finished in grey – fan/filter unit mounted onto hood enclosure complete with clear polycarbonate panel and hood lighting – particulate (intake) filter – bonded carbon filter – centrifugal blower, external rotor motor type brush-less, UL, VDE and CSA approved – sealed electricals, downstream of filters.

Air Volume at Free Air

355m3/hr

Ave. Air Velocity at Filter Face

0.50 m/sec

Ave. Air Velocity at Hood Face

0.50 m/sec

Filters

Particulate: IFA3 – Carbon: AC200 – Optional EPA: HE495

Noise Level LAeq dB(A

60 db(A)
