BV200S – A2 Recirculatory Glue Booth

BV200S – A2 Recirculatory Glue Booth

£410.00

£492.00 inc VAT

Delivery: 2 – 3 weeks

SKU: BV200S

  • Description
  • Additional information

Description

Art No: BV200S – A2 Recirculatory Glue Booth

The BenchVent BV200S is a re-circulatory glue booth which comes complete with spray shield. It is designed for art, graphics, hobbies, modelling and crafts, for use in areas where ducted glue booths are not practical. Users can position it two ways, reclining or upright, to suit the work they are doing:

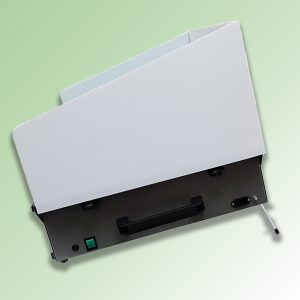

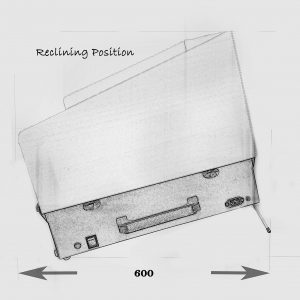

  • Reclining position (on back-stand) – For Spray Mount, aerosol lacquers and fixatives etc. applied to artwork placed onto the filter. BV300S accommodates artwork up to A3.
  • Upright position – For model sprays and airbrush use – light grinding particles – solder fume displacement – general solvent dilution etc.

The BV200S can accommodate artwork up to an A2 size.

BV200S Applications:

The BV200S are suitable arts and graphics, hobbies,modelling and craft applications. It will extract fumes and filter particles created by:

  • Crafting
  • Gluing
  • Model Making
  • Airbrush Painting
  • Soldering
  • Light grinding
  • Cleaning with solvents

The BV200S is not recommended for continued use, such as in production applications, especially in extremely confined areas where harmful solvent vapours and fumes may accumulate. For this environment,  you will need higher specification extraction cabinets such as BV660H-C or BV930H-C

Key Features

  • Quiet in operation
  • Quick assembly
  • Easy to use – just plug and switch on
  • Portable
  • Steel construction for durability
  • Replaceable plastic spray/fume shield

What’s included with the BV300S?

  • Filter unit with fan(s) and back stand attached
  • Spray Shield
  • 1 x Particulate filter
  • 1 x Charcoal Impregnated fibre filter
  • Power Lead
  • Data/Warranty Booklet

Download the datasheet for more information: BV200S Datasheet

Lifetime Guarantee

All BenchVent filtration and extraction systems carry a lifetime guarantee.

How does the filter extract dangerous contaminants?

The particulate (intake) filter is a three stage graduated fibre filter with a high ‘dust’ holding capacity for long life. Filtration to 5 micron particles. NB: Spray particulate sizes vary from 10 to 20 microns. The carbon impregnated fibre filter (behind intake) assists in the reduction of solvent odours. Through the process of filtration, adsorption and dilution, operator exposure to potentially hazardous substances is vastly reduced.

Demonstrating adequate control of the risks to the health of employees students and the general public, from dusts, powders, mists, fumes and vapours is the fundamental requirement of the Control of Substances Hazardous to Health (CoSHH). For LEV information for employers visit theHSE website.



Additional information

Weight 43 kg

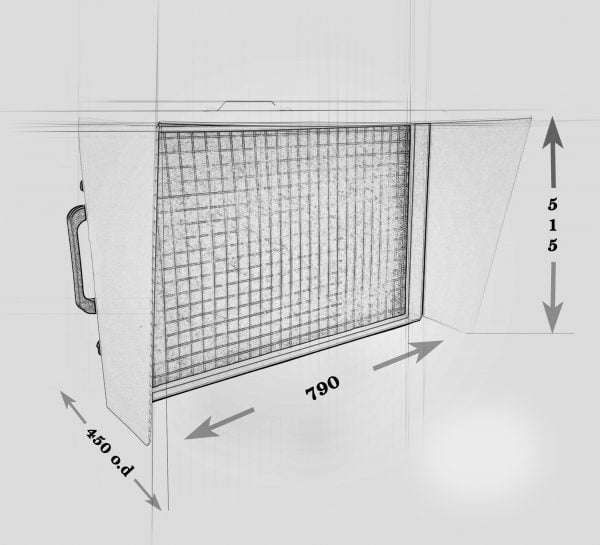

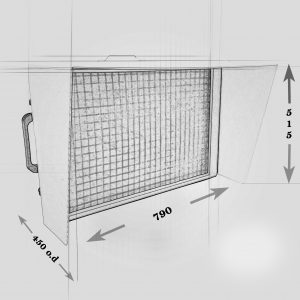

Dimensions

720x430x515mm (wxdxh)

Description

Steel construction finished in grey –– plastic replaceable spray/fume shield – back stand / carry handle – particulate filter – carbon impregnated fibre filter – axial fan, external rotor motor type brushless, UL, VDE and CSA approved – sealed electrical wiring and switch, downstream of filters.

Air Volume at Free Air

650 m3/hr

Ave. Air Velocity at Filter Face

0.50 m/sec

Ave. Air Velocity at Shield Face

0.35 m/sec

Fan Motor Spec

240V 50Hz 80W, 115V 60Hz 90W

Filters

Particle Filter: IFA2 – Charcoal Filter: CHA2 – Filter Kit: FKA2

Noise Level LAeq dB(A)

61 db(A)
